NVIDIA Quadro GP100

[vc_row][vc_column][vc_column_text]

NVIDIA QUADRO GP100
BRING OPTIMAL DESIGNS
TO MARKET FASTER

THE ADVANTAGE OF GPUs FOR CAE

Computer aided engineering (CAE) workloads are computationally intensive, requiring massive amounts of double precision compute performance to complete the simulation task. While CPUs use up to 24 cores per CPU for a task, GPUs can provide thousands of cores, offering a superior compute solution for CAE. Multiple GPUs can then be used for the extreme levels of performance required by the largest, most complex simulations.[/vc_column_text][vc_empty_space][vc_single_image image=”15855″ img_size=”full”][vc_empty_space][vc_column_text]Not only can GPUs provide the compute power necessary for compute intensive CAE workflows, they also deliver the visualization capability necessary to create complex designs, pre & post processing data for CAE analysis, as well as displaying the results.[/vc_column_text][vc_empty_space][vc_single_image image=”15852″ img_size=”full”][vc_empty_space][dt_quote]“We have seen significant acceleration of our Abaqus FEA software simulations which help unify traditional design and simulation workflows.” – Sumanth Kumar, Vice President, Growth, SIMULIA, Dassault Systèmes[/dt_quote][vc_empty_space][vc_column_text]Powered by NVIDA® Pascal™ GPU technology, the GP100 has 5.2 TFLOPS of double precision floating point performance and 717 GB/s of ultra-fast memory bandwidth, giving you the graphics and computer power you need for the most demanding CAE workflows.[/vc_column_text][vc_empty_space][vc_single_image image=”15862″ img_size=”full”][vc_empty_space][vc_column_text]

FASTER LOCAL SIMULATION

[/vc_column_text][vc_empty_space][vc_row_inner][vc_column_inner width=”1/2″][vc_single_image image=”15865″ img_size=”full”][/vc_column_inner][vc_column_inner width=”1/2″][vc_single_image image=”15866″ img_size=”full”][/vc_column_inner][/vc_row_inner][vc_empty_space][vc_column_text]

COST-EFFECTIVE SIMULATION

[/vc_column_text][vc_empty_space][vc_row_inner][vc_column_inner width=”1/2″][vc_single_image image=”15868″ img_size=”full”][/vc_column_inner][vc_column_inner width=”1/2″][dt_quote]”Preliminary studies with the new Quadro GP100 show that our customers can cut the time for typical ANSYS Mechanical models in half, enabling them to innovate products faster across the entire life cycle.” – Wim Slagter, Director of HPC & Cloud Marketing, ANSYS[/dt_quote][/vc_column_inner][/vc_row_inner][vc_empty_space][vc_column_text]

GPU ACCELERATED APPLICATIONS

Major CAE software solutions have been optimized with NVIDIA® CUDA® technology to take advantage of the power of the NVIDIA® Quadro® GP100. For a complete list of GPU accelerated applications for CAE go to www.nvidia.com/gpu-applications[/vc_column_text][vc_empty_space][dt_fancy_separator][vc_empty_space][vc_column_text]

UNMATCHED POWER. UNMATCHED CREATIVE FREEDOM.
NVIDIA® QUADRO® GP100

World’s Most Advanced Visual Computing Accelerator.

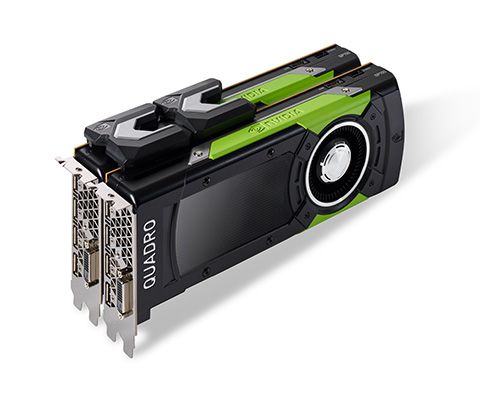

NVIDIA Quadro GP100The NVIDIA Quadro GP100, powered by Pascal GPU architecture, is equipped with the most advanced visualization and simulation capabilities to meet the needs of the most demanding professional workflows. A single GP100 with 3584 CUDA cores has incredible horsepower to render photorealistic design concepts interactively, create extremely detailed 3D models, run intensive CAE simulations to validate designs, and evaluate design prototypes in immersive VR. You can even connect two GP100 boards with NVIDIA NVLink™ technology to scale performance with an amazing 32 GB of combined HBM2 ultra-high bandwidth memory.

The GP100 is an excellent choice for developers who want to tap into the power of NVLink and Unified Memory to maximize their application performance. Additionally, its fast FP16 performance makes it an ideal desktop workstation solution for developers working on the latest Deep Learning/AI algorithms and frameworks.

Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.[/vc_column_text][vc_empty_space][vc_row_inner][vc_column_inner width=”1/2″][vc_column_text]

Features

  • Four DisplayPort 1.4 Connectors
  • DisplayPort with Audio
  • 3D Stereo Support with Stereo Connector
  • NVIDIA GPUDirect™ Support
  • NVIDIA NVLink™ Support
  • Quadro Sync II4 Compatibility
  • NVIDIA nView® Desktop Management Software
  • HDCP 2.2 Support
  • NVIDIA Mosaic5
  • NVIDIA Iray and mental ray support

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Specifications

  • GPU Memory – 16 GB HBM2
  • Memory Interface – 4096-bit
  • Memory Bandwidth – Up to 717 GB/s
  • NVIDIA CUDA® Cores – 3584
  • NVIDIA NVLINK™ – 2 GP100 boards supported
  • System Interface – PCI Express 3.0 x16
  • Max Power Consumption – 235 W
  • Thermal Solution – Active
  • Form Factor – 4.4” H x 10.5” L, Dual Slot, Full Height
  • Display Connectors – 4x DP 1.4, 1x DVI-D DL
  • Max Simultaneous Displays – 4 direct, 4 DP 1.4 MultiStream
    Display Resolution 4x 4096×2160 @ 120Hz
    4x 5120×2880 @ 60Hz
  • Graphics APIs – Shader Model 5.1 | OpenGL 4.56 | DirectX 12.07 | Vulkan 1.06
  • Compute APIs – CUDA | DirectCompute | OpenCL™

[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_empty_space][vc_row_inner][vc_column_inner width=”1/4″][vc_single_image image=”15267″ img_size=”full”][/vc_column_inner][vc_column_inner width=”3/4″][vc_column_text]

Contact LivePicture today at 248-390-6407 to discuss your Quadro GP100-based CAE Solutions today!
